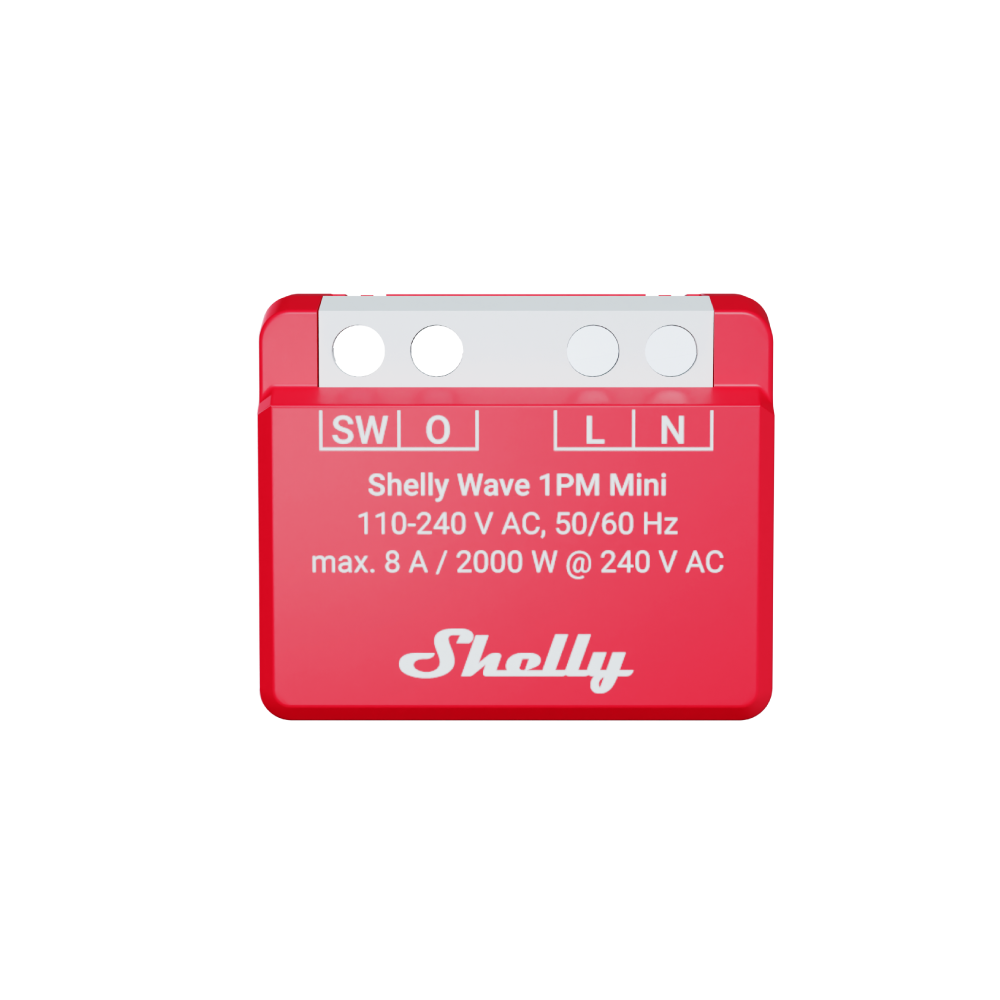

Supports up to 8 A at 240 V AC
-
Integrated power measurement
-
Supports Z-Wave Long Range – stable connection over distances of more than 1 km (line of sight)
-
Z-Wave frequency: 864 MHz (ZWLR) and 868.4 MHz (Z-Wave Plus)
-
Energy efficient: Only up to 0.3 W power consumption
-
Latest technology: Z-Wave 800 Series
-
Easy setup with SmartStart – just scan and go
-
Security 2 Authenticated for highest security
-
OTA firmware updates (Over-the-Air)
-
Quick installation in most standard flush-mounted boxes and switches
Technical Specifications
|
Power supply |
110 - 240 V ̴ 50/60 Hz |
|
|
Power consumption |
< 0.3W |
|
|
Power measurement [W] |
Yes |
|
|
External protection |
10 A, tripping characteristic B or C 6 kA interrupting rating Energy limiting class 3 |
|
|
Max. switching voltage AC |
240 V |
|
|
Max. switching current AC |
8 A |
|
|
Max switching power AC: |
2000 W |
|
|
Max. switching voltage DC |
N/A |
|
|
Max. switching current DC |
N/A |
|
|
Overheating protection |
Yes |
|
|
Overcurrent protection |
Yes |
|
|
Overvoltage protection |
Yes |
|
|
Long range network |
Distance (depends on local condition) |
Up to 80 m indoors (262 ft.) or up to 1000 m outdoors (3281 ft.) |
|
Z-Wave® repeater |
No |
|
|
Z-Wave® frequency bands |
864MHz |
|
|
Mesh network |
Distance (depends on local condition) |
Up to 40 m indoors (131 ft.) |
|
Z-Wave® repeater |
Yes |
|
|
Z-Wave® frequency bands |
868.4 MHz |
|
|
CPU |
Z-Wave® S800 |
|
|
Maximum radio frequency power transmitted in frequency band(s) |
< 25 mW |
|
|
Size (H x W x D) |
29x35x16 ± 0.5 mm / 1.11x1.35x0.63 ± 0.02 in |
|
|
Weight |
18 ± 1 g / 0.63 ± 0.04 oz |
|
|
Mounting |
In-wall box |
|
|
Screw terminals max. torque |
0.4 Nm / 3.54 lbin |
|
|
Conductor cross section |
0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
|
|
Conductor stripped length |
6 to 7 mm / 0.24 to 0.28 in |
|
|
Shell material |
Plastic |
|
|
Color |
Red |
|
|
Ambient temperature |
-20°C to 40°C / -5°F to 105°F |
|
|
Humidity |
30% to 70% RH |
|
|
Max. altitude |
2000 m / 6562 ft. |
|
