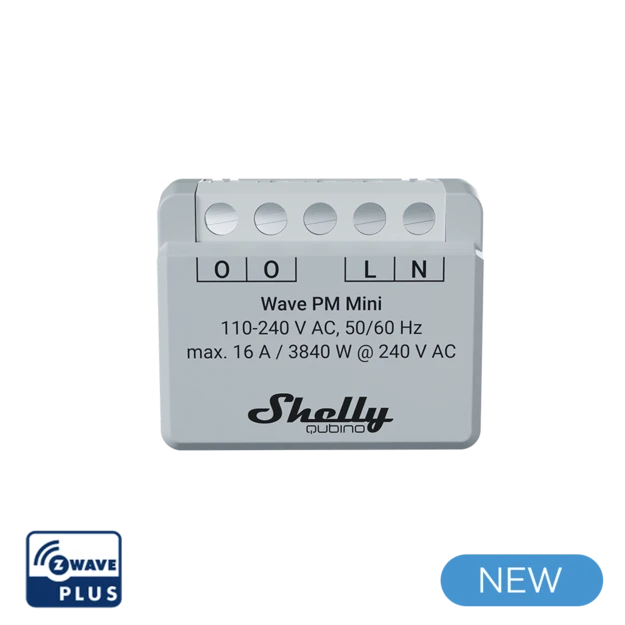

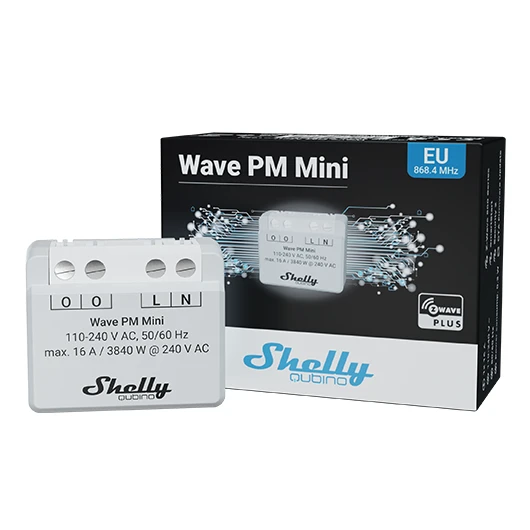

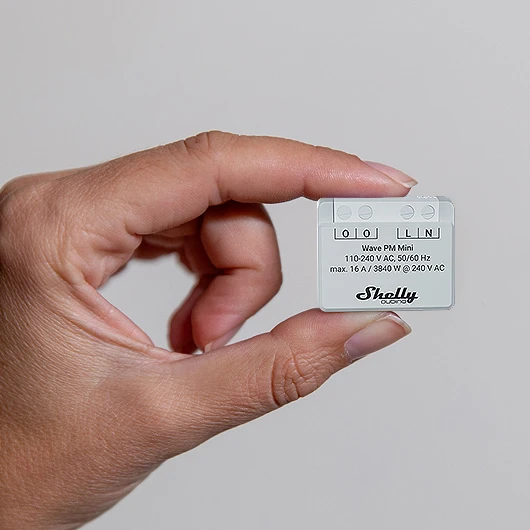

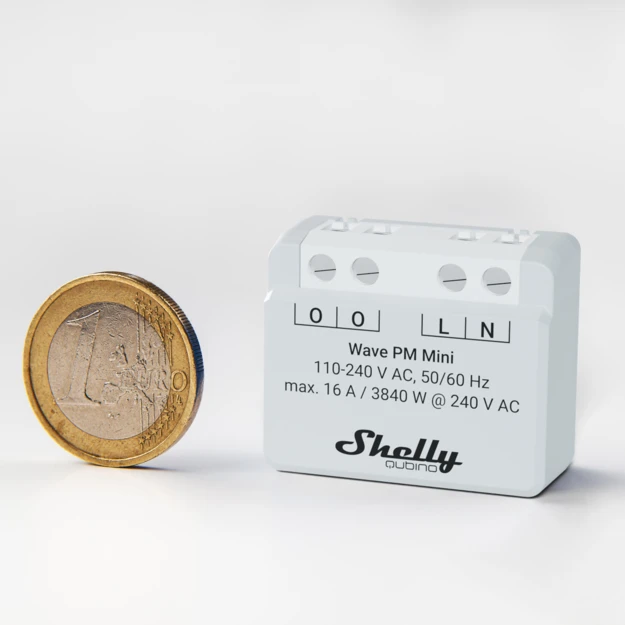

The world's smallest Z-Wave power meter for precise current monitoring. Tracks the power consumption of electrical devices from anywhere and optimizes your energy use.
Main features
Supports up to 16 A at 240 V AC
Power measurement
Extremely low power consumption: < 0.3 W
Z-Wave frequency band: 868.4 MHz (CEPT countries)
Latest technology: Z-Wave 800 series
Automatic setup with SmartStart
Security 2 Authenticated for the highest security level
Supports over-the-air firmware updates

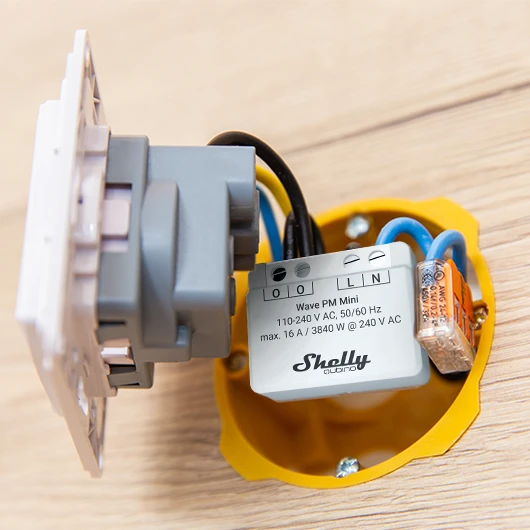

Fast and easy installation in most standard electrical boxes and switches
Works with Z-Wave certified gateways and over 4,000 Z-Wave devices
Specifications
Power supply
110 - 240 V AC, 50/60 Hz
Power consumption
< 0.3 W
Power measurement (W)
Yes
External protection
16 A, tripping characteristic B or C
6 kA interrupting rating
Energy limiting class 3
Max. measurement power
3840 W
Max measurement current
16 A
Overheating protection
Yes
Distance
Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave®repeater
Yes
CPU
Z-Wave®S800
Z-Wave®frequency band:
868.4 MHz
Maximum radio frequency power transmitted in frequency band(s)
